TB80

  • Max. working height: 26.4m
  • Platform capacity: 227kg
  • Stowed height: 2.9m
  • Weight: 16,480kg

 Product Specification Sheet

 Snorkel Guard™ Brochure
Add to quote list

Description

The Snorkel TB80 is a robust diesel telescopic boom lift, which can lift 227kg to a working height of 26.4m. Equipped with powerful 4 wheel drive and 4 wheel steer, the TB80 is designed to handle the toughest construction applications.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 4-wheel drive, steer & crab steer
  • Hydraulic platform rotation
  • 360  continuous turntable rotation
  • Drive motion alarm
  • Flashing amber light
  • Foam filled tyres
  • Proportional drive, boom lift, swing & extend
  • Rheostat control for jib & platform level
  • Power line to platform
  • Tri-entry platform
  • Dual lanyard attachment points
  • Horn
  • Hour meter & on-board diagnostics display
  • 3.5  tilt alarm
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

26.4m
Max Platform Height

24.4m
Max Working Outreach

21.7m
Platform Size

0.91m x 2.44m
Overall Width

2.6m
Overall Length

11.8m
Stowed Height

2.9m
Ground Clearance

330mm
Platform Capacity (SWL)

227kg
Max Drive Height

24.4m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

4.8km/h
Max Drive Speed (elevated)

1.0 km/h
Jib Length

n/a
Jib Arc

n/a
Platform Rotation

170°
Turret Rotation

360° continuous
Tailswing

1.9m
Raise/Lower Time

70/65 sec
Gradeability

40%
Inside Turning Radius

2.4m
Outside Turning Radius

4.7m
Tyres

15 x 625 foam filled lug
Controls

proportional joystick
Drive System

4 wheel drive
Power Source

Kubota V2403 48kW/65hp diesel – Tier 4 Final
Weight

16,480kg

Options

  • Special paint colours
  • Airline to platform
  • Non-marking tyres
  • AC generator 110V/240V 2kW
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • Utility package
  • 12kW generator package
  • 12kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

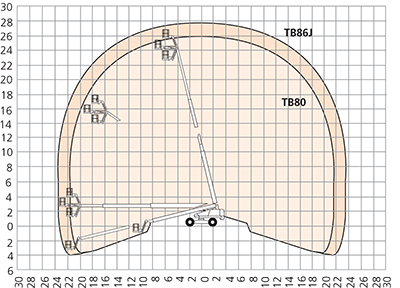

Working Envelope

TB80-TB86J-working-envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
