SR626E

Max. lift height: 5.79m
Max. lift capacity: 2,600kg
Max. forward reach: 3.1m
Weight: 4,800kg

Description

The SR626E is the electric version of the SR626 rough terrain telehandler – an industry first. Its full-time 4-wheel drive is powered by lithium-ion batteries for long-lasting durable performance. Built compact, the SR626E is highly maneuverable with reduced noise and zero emissions that is suitable for indoor use.

Standard Features

Lithium-ion batteries
Full-time 4-wheel drive
4-wheel steer – selectable front, crab & coordinated
Auxiliary hydraulic circuit on the boom
Variable speed hydrostatic drive
Fully enclosed cab with heat
Proportional joystick
Illuminated gauge and switch panels
Color LCD display with machine & engine diagnostics
Adjustable suspension seat
Fixed 1200mm carriage & 1200mm floating forks
2000 charging cycles/2 year *** lithium battery warranty
2 year parts & labour, 5 year structural warranty
CE approved

***Whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional information

Max. lift capacity	2,600kg
Max. lift height	5.79m
Max. forward reach	3.1m
Width	1.89m
Stowed Height	1.93m
Length to fork face	4.19m
Wheelbase	2.5m
Ground Clearance	220mm
Max. drive speed	12km/h
Raise/Lower Time	6.9 / 5 seconds
Hydraulic flow (per minute)	80L
Hydraulic pressure	230bar
Hydraulic oil capacity	70L
Outside Turning Radius	3.25m
Tyres	12 x 16.5
Power Source	Lithium-ion 80V 32kWh batteries
Operating temperature	(-)20 C to (+)45 C
Charger	on-board, single phase
Weight	4,800kg

Options

Special paint colours
Euro coupling
Grammer air suspension seat
Front & rear LED work lights (4)
Work lights on boom (2)
Heated right exterior mirror
Additional rear mirror
Cab front glass protection grille
Non-marking tyres 12-16.5
Engine preheater 220V
Boom suspension & floating boom
Bluetooth radio, handsfree & USB socket
Sun curtain
Fixed tow hook 6 ton
Snorkel OnSite™ telematics

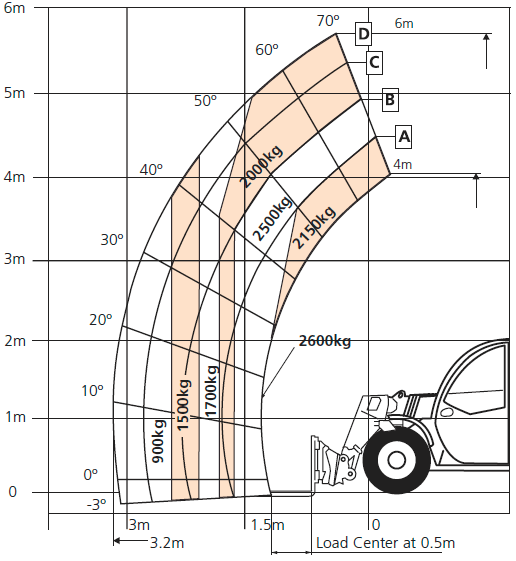

Load Chart

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
