SR1442

Max. lift height: 13.5m
Max. lift capacity: 4,200kg
Max. forward reach: 9.5m
Weight: 11,150kg

Description

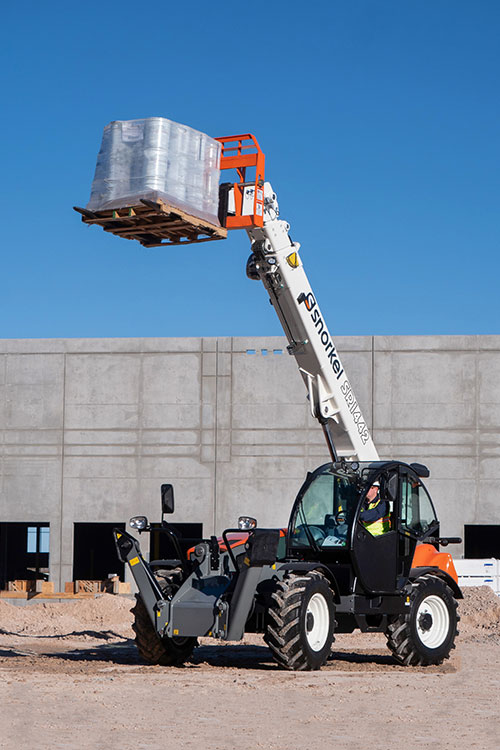

The Snorkel SR1442 rough terrain telehandler is reliably rugged. Equipped with a powerful Deutz Tier 4 Final diesel engine, this telehandler is designed to deliver sturdy performance on all terrain. It also features outriggers and frame sway as standard for maximum control.

Standard Features

Full-time 4-wheel drive
4-wheel steer – selectable front, crab & coordinated steering modes
Auxiliary hydraulic circuit on the boom
Variable speed hydrostatic drive
Fender (4)
Fully enclosed cab with heat
Proportional joystick controls
Adjustable suspension seat
Illuminated gauge & switch panels
Colour LCD display with machine & engine diagnostics
Flashing beacon
Fixed 1500mm carriage & 1500mm floating forks
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max. lift capacity	4,200kg
Max. lift height	13.5m
Max. forward reach	9.5m
Overall Width	2.3m
Stowed Height	2.56m
Length to fork face	6.45m
Wheelbase	2.95m
Ground Clearance	350mm
Max. drive speed	30km/h
Raise/Lower Time	13 / 9.5 seconds
Frame levelling	11°
Hydraulic flow (per minute)	120L
Hydraulic pressure	230bar
Hydraulic oil capacity	150L
Fuel capacity	120L
Outside Turning Radius	4.2m
Tyres	405/70 – 24
Power Source	Deutz 55.4kW Stage V/Tier 4 Final diesel
Weight	11,150kg

Options

Special paint colours
Air conditioning
Grammer air suspension seat
Front & rear LED work lights (4)
Work lights on boom (2)
Heated right external mirror
Additional rear mirror
Cab front glass protection grille
Engine preheater 220V
Boom suspension & floating boom
Bluetooth radio, handsfree & USB socket
Sun curtain
Fixed tow hook 6 ton
Snorkel OnSite™ telematics

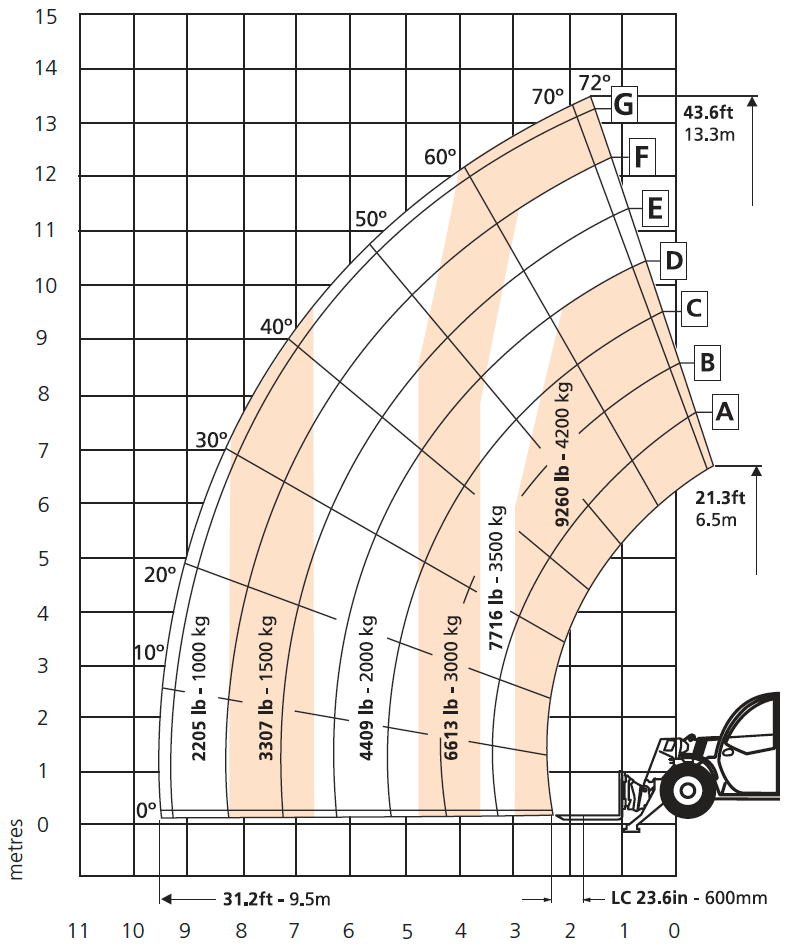

Load Chart

Snorkel Sr1442 Load Chart

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
