S9053RT

Max. working height: 17.9m
Platform capacity: 680kg
Stowed height: 3.2m
Weight (without outriggers): 7,484kg

Add to quote list

Description

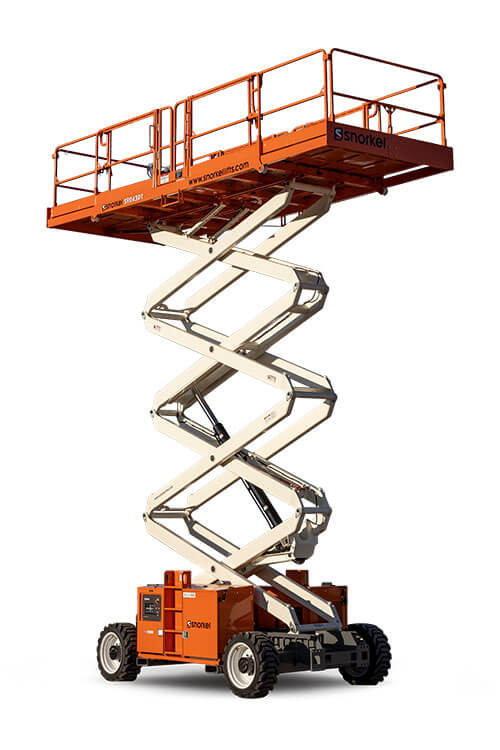

The new Snorkel S9053RT high capacity rough terrain scissor lift is a high-powered performer. Designed to tackle tough terrain with ease, its terrain capabilities is coupled with a large roll-out extension deck. This scissor lift features stabilizers as standard for sturdy versatility on all terrain. With high capacity and a sturdy construction, the S9053RT improves productivity on the job.

Standard Features

4-wheel drive
4 hydraulic outriggers with automatic levelling (S9053RT only)
Single powered deck extension
Proportional controls
Foam filled tyres
Power line to platform
Drive motion alarm
Descent alarm
Fold-down guardrails
Locking oscillating axle
Manual lowering valve
Flashing amber light
Dual lanyard attachment points
Hour meter & on-board diagnostics display
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	17.9m
Max Platform Height	15.9m
Platform Size (stowed)	3.95m x 2.28m
Platform size (single deck extended)	4.95m x 2.28m
Platform size (dual deck extended)	6.7m x 2.28m
Extension Deck Length	1.44m
Overall Width	2.28m
Overall length (without outriggers)	4.08m
Overall length (with outriggers)	4.77m
Stowed Height	3.2m
Min Height (guardrails folded)	2.33m
Ground Clearance	274mm
Platform Capacity (SWL)	680kg
Max Drive Height	13.1m
Max Wind Speed	12.5m/s
Max Drive Speed (stowed)	6.7km/h
Max Drive Speed (elevated)	0.8km/h
Raise/Lower Time	55/60 sec
Gradeability	50%
Max Outrigger Leveling (front to rear)	7º
Max Outrigger Leveling (side to side)	12˚
Inside Turning Radius	2.03m
Outside Turning Radius	5.28m
Tyres	12 x 33 foam filled
Controls	proportional joystick
Drive System	4 wheel drive
Power Source	Kubota diesel
Weight (without outriggers)	7,484kg
Weight (with outriggers)	8,829kg

Options

Special paint colours
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Cold weather package (block heater + battery warm up)
Single powered extension deck
Dual powered extension decks
Dual manual extension decks
Hydraulic generator 110V/240V
12kW generator package
4 hydraulic outriggers with automatic levelling (S9033RT + S9043RT only)
Snorkel OnSite™ telematics

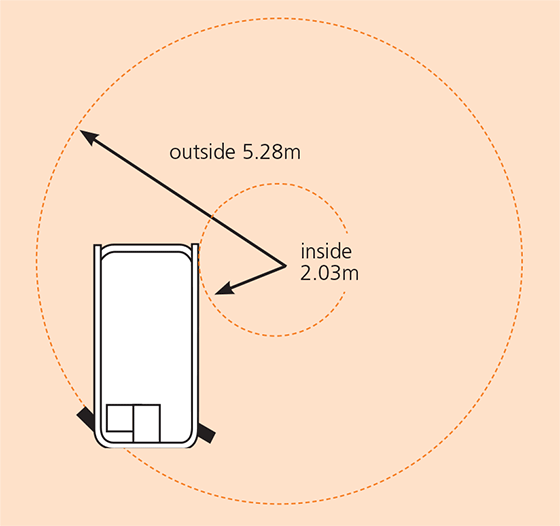

Turning Radius

Snorkel S9033rt S9043rt S9053rt Turning Radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
