S4732E

Max. working height: 11.8m
Platform capacity: 350kg
Stowed height: 2.39m
Weight: 2,693kg

Add to quote list

Description

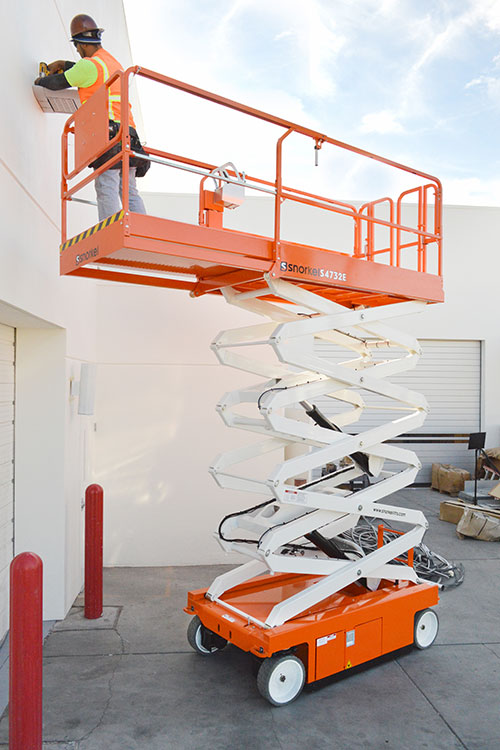

The Snorkel S4732E is part of the Snorkel electric scissor family, lifting up to 11.8m. A spacious roll-out deck extension with saloon-door style entry gates maximizes the platform working area. Deep cycle batteries ensure the lift works as long as you do, and a robust all-steel construction means it will keep on working for years to come too.

Standard Features

Roll-out deck extension with dual locks
Non-marking tyres
Loading control pendant
Swing-out service trays
Saloon-door style entry gates
Descent alarm
All motion alarm
2 persons indoor
1 person outdoor
Proportional controls, including descent
Power line to platform
Hour meter & on-board diagnostics display
Integrated battery charger
Battery condition indicator
Crane & forklift points
Dual lanyard attachments points
Flashing amber light
Scissor stack roller slide plates (set of 2)
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	11.8m
Max Platform Height	9.8m
Platform Size (stowed)	1.09m x 2.14m
Platform Size (extended)	1.09m x 3.36m
Extension Deck Length	1.21m
Overall Length (with step)	2.3m
Overall Length (without step)	2.26m
Overall Width	1.19m
Stowed Height	2.39m
Min Height (guardrails folded)	1.94m
Ground Clearance (stowed)	66mm
Ground Clearance (elevated)	19mm
Platform Capacity (SWL)	350kg
Max Drive Height	9.8m
Max Wind Speed	12.5m/s
Max Drive Speed (stowed)	3.2 km/h
Max Drive Speed (elevated)	0.6 km/h
Raise/Lower Time	50 / 58 sec
Gradeability	25%
Inside Turning Radius	0.25m
Outside Turning Radius	2.41m
Tyres	15 x 5 non-marking rubber
Controls	proportional
Drive System	2 wheel drive
Power Source	24V DC battery electric
Charger	90 – 240V, 25amp
Weight	2,693kg

Options

Special paint colours
Snorkel Guard™ secondary guarding system
Snorkel OnSite™ telematics
Airline to platform
Aircraft bumpguard package
Panel carrier
Environmental hydraulic oil
Pipe rack
Top rail

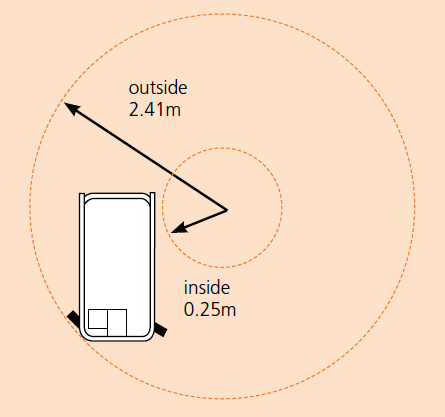

Turning Radius

S4726E/S4732E Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
