S3215E

  • Max. working height: 6.6m
  • Platform capacity: 272kg
  • Stowed height: 2.02m
  • Weight: 1,227kg

Description

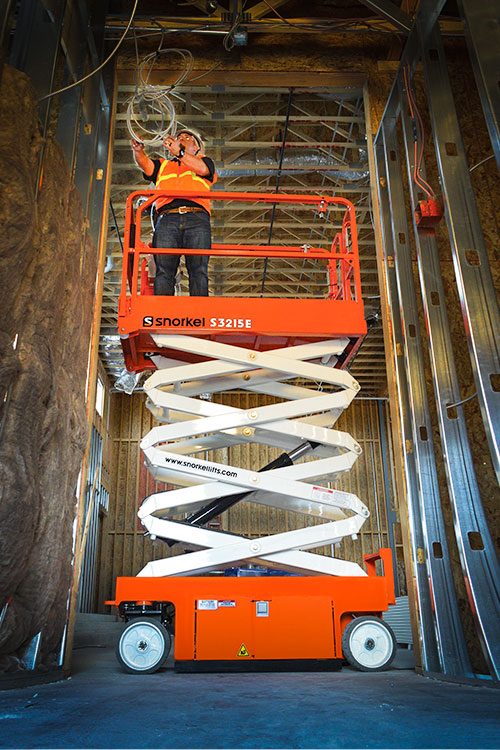

Built to handle the demands of the rental industry and the toughest job sites, this new Snorkel electric scissor lift is designed with a focus on low total ownership costs. Reliable, robust and simple lifts packed with innovative features designed to reduce downtime.

Standard Features

  • Roll-out deck extension with dual locks
  • Non-marking tyres
  • Loading control pendant
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoor
  • 1 person outdoor
  • Proportional controls, including descent
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachments points
  • Flashing amber light
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

6.6m

Max Platform Height

4.6m

Platform Size (stowed)

0.72m x 1.62m

Platform Size (extended)

0.72m x 2.53m

Extension Deck Length

0.91m

Overall Length (with step)

1.78m

Overall Length (without step)

1.73m

Overall Width

0.81m

Stowed Height

2.02m

Min Height (guardrails folded)

1.59m

Ground Clearance (stowed)

66mm

Ground Clearance (elevated)

19mm

Platform Capacity (SWL)

273kg

Max Drive Height

4.6m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2 km/h

Max Drive Speed (elevated)

0.6 km/h

Raise/Lower Time

20 / 36 sec

Gradeability

25%

Inside Turning Radius

0.1m

Outside Turning Radius

1.63m

Tyres

12 x 4 non-marking rubber

Controls

proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

1,227kg

Options

  • Special paint colours
  • Snorkel Guard™ secondary guarding system
  • Snorkel OnSite™ telematics
  • Environmental hydraulic oil
  • Airline to platform
  • Aircraft bumpguard package
  • Panel carrier
  • Pipe rack
  • Top rail

Turning Radius

S3215E-S3219E-turning-radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
