S2255RT

Max. working height: 8.5m
Platform capacity: 420kg
Stowed height: 2.35m
Weight: 2,410kg

Add to quote list

Description

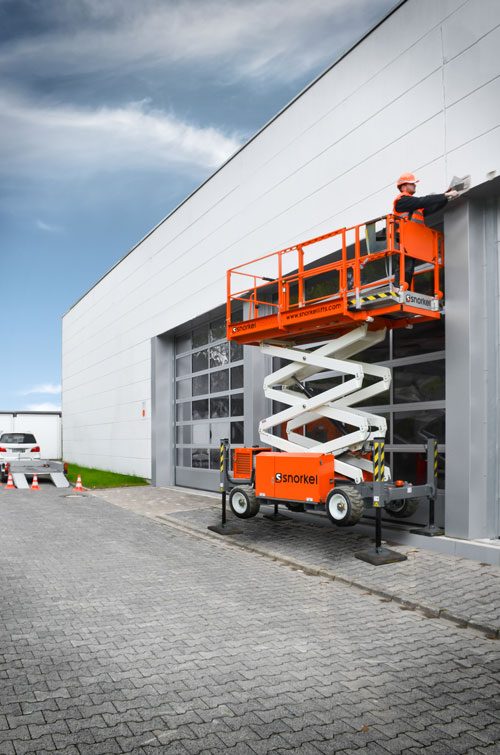

The Snorkel S2255RT is a narrow diesel scissor platform that provides excellent off-road performance. Thanks to the slim dimensions, it is ideally suited for access to and use in narrow areas of work. More platform space and additional reach are available via a roll-out platform extension.

Standard Features

4-wheel drive
4 hydraulic outriggers with automatic levelling
Roll-out deck extension
Proportional controls
Non-marking tyres
Power line to platform
Drive motion alarm
Descent alarm
Manual lowering valve
Flashing amber light
Dual lanyard attachment points
Oscillating axle
Hour meter
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	8.5m
Max Platform Height	6.5m
Platform Size (stowed)	1.4m x 2.73m
Platform Size (extended)	1.4m x 3.93m
Extension Deck Length	1.2m
Overall Width	1.45m
Overall Length	3.3m
Stowed Height	2.35m
Min Height (guardrails folded)	2.0m
Ground Clearance	260mm
Platform Capacity (SWL)	420kg
Max Drive Height	6.2m
Max Wind Speed	12.5m/s
Max Drive Speed (stowed)	5.2km/h
Max Drive Speed (elevated)	0.66km/h
Raise/Lower Time	26/30 seconds
Gradeability	35%
Max Outrigger Leveling (front to rear)	6º
Max Outrigger Leveling (side to side)	10º
Inside Turning Radius	2.5m
Outside Turning Radius	4.75m
Exit/entry angle	20°
Tyres	0.58m x 0.22m – 12 non-marking
Controls	proportional joystick
Drive System	4 wheel drive
Power Source	Kubota diesel engine
Weight	2,410kg

Options

Special paint colours
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Cold weather package
Snorkel OnSite™ telematics

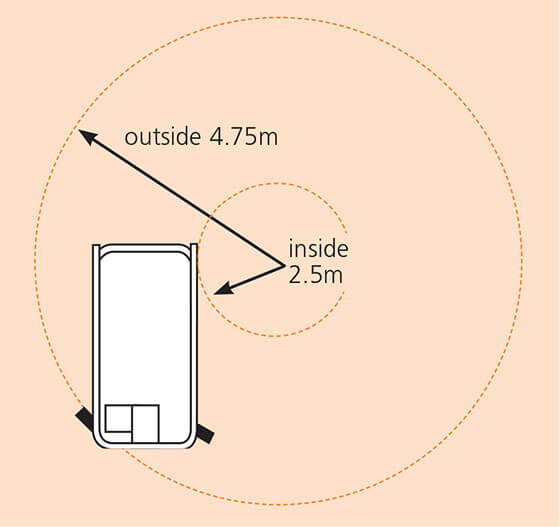

Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
