ML25I

  • Lift height–forks up: 7.6m
  • Lift height–forks down: 7.1m
  • Stowed height: 1.9m
  • Weight: 167kg

Description

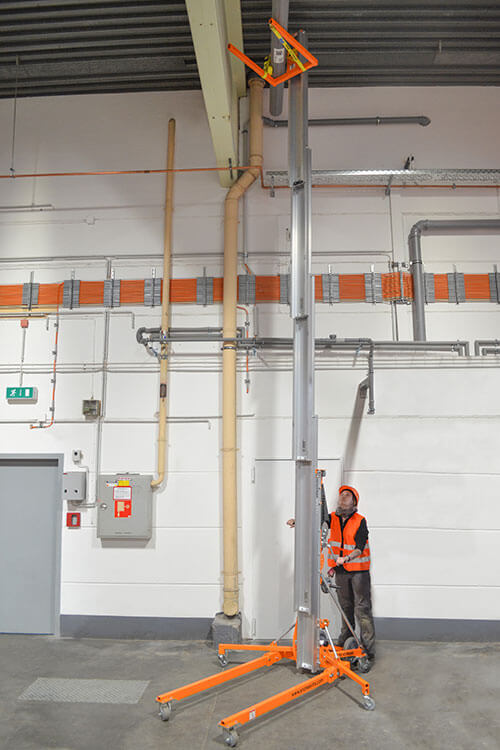

The ML25I industrial material lift is dependably rugged. This robust material lift is designed to withstand the demands of the rental industry. Its reliable construction is also narrow enough to fit through standard doorways. A spring-actuated locking system provides quick and easy deployment and stowage.

Standard Features

  • Stabilisers with non-marking swivel casters
  • Mast brake
  • Cable guard
  • Non-marking transport/loading wheels
  • Dual-handle, two-speed shift-on-the-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminium extrusions
  • Heavy duty, non-marking casters
  • Crane attachment point
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Lift height – forks up

7.6m

Lift height – forks down

7.1m

Stowed width

0.77m

Stabiliser width

1.63m

Stowed Length

0.8m

Operating length

1.96m

Stowed Height

1.9m

Fork width (outside)

0.58m

Fork length

0.76m

Ground Clearance

60mm

Max. load capacity (0.36m load centre)

272kg

Max. load capacity (0.61m load centre)

181kg

Max. load capacity (1.07m load centre)

91kg

Min. load height

150mm

Winch (high speed)

13.1 cranks/m

Winch (low speed)

49.2 cranks/m

Weight

167kg

Options

  • Special paint colours
  • Adjustable forks
  • Boom
  • Pipe cradle
  • Fork extensions
  • Load platform
  • Smart latch

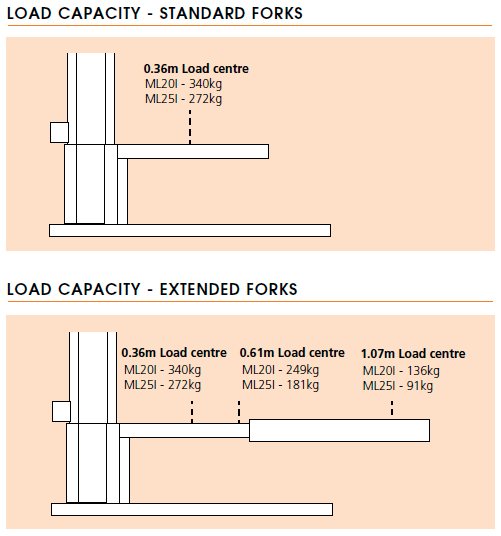

Loading Capacity

Snorkel ML20I/ML25I Load Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
