ML24C

Lift height–forks up: 7.4m
Lift height–forks down: 6.9m
Stowed height: 2.2m
Weight: 162kg

Add to quote list

Description

The Snorkel ML24C construction material lift is top performer. Built to handle construction jobsites, this material lift offers a dual handle, shift-on-the-fly, two-speed winch and best-in-class load capacity. For a long working life, the ML18C features aluminum construction.

Standard Features

Stabilisers with non-marking swivel casters (ML18C & ML24C)
Mast brake
Cable guard
Non-marking transport/loading wheels
Dual-handle, two-speed shift-on-the-fly winch
Metal cable pulleys with sealed bearings
Heavy-gauge aluminium extrusions
Heavy duty, non-marking casters
Crane attachment point
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Lift height – forks up	7.4m
Lift height – forks down	6.9m
Stowed width	0.77m
Stabiliser width	1.63m
Stowed Length	0.85m
Operating length	2.06m
Stowed Height	2.2m
Fork width (outside)	0.58m
Fork length	0.76m
Ground Clearance	60mm
Max. load capacity (0.36m load centre)	295kg
Max. load capacity (0.61m load centre)	195kg
Max. load capacity (1.07m load centre)	80kg
Min. load height	150mm
Winch (high speed)	13.1 cranks/m
Winch (low speed)	49.2 cranks/m
Weight	162kg

Options

Special paint colours
Adjustable forks
Boom
Pipe cradle
Fork extensions
Load platform
Stabilisers with non-marking swivel casters (ML12C)
Smart latch

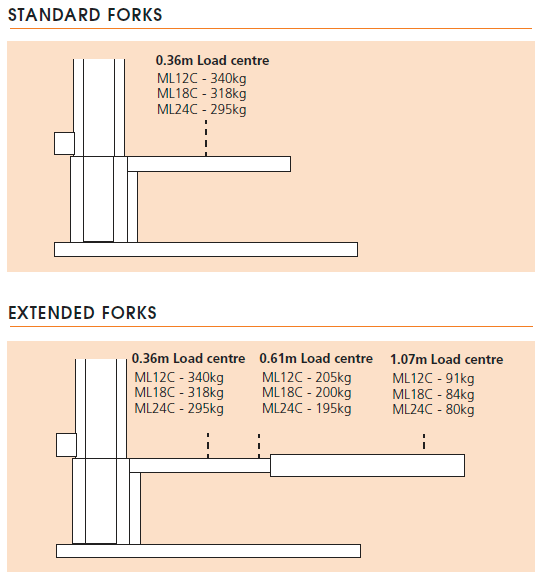

Loading Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
