ML20I

Lift height–forks up: 6.2m
Lift height–forks down: 5.7m
Stowed height: 1.9m
Weight: 150kg

Add to quote list

Description

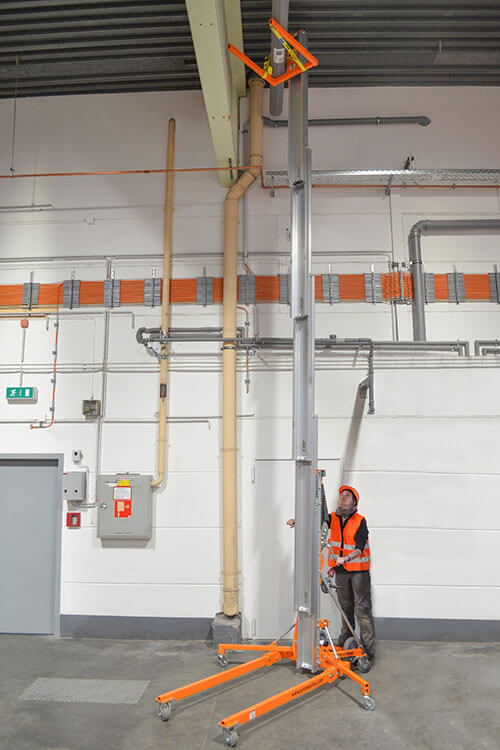

The ML20I industrial material lift is readily resilient for every job. Capable of handling industrial-strength tasks, this high specification material lift is also narrow in design to maneuver through standard doorways. Easily able to handle heavy-duty load capacities, the ML20I features stabilizers with non-marking swivel casters as standard.

Standard Features

Stabilisers with non-marking swivel casters
Mast brake
Cable guard
Non-marking transport/loading wheels
Dual-handle, two-speed shift-on-the-fly winch
Metal cable pulleys with sealed bearings
Heavy-gauge aluminium extrusions
Heavy duty, non-marking casters
Crane attachment point
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Lift height – forks up	6.2m
Lift height – forks down	5.7m
Stowed width	0.77m
Stabiliser width	1.63m
Stowed Length	0.8m
Operating length	1.96m
Stowed Height	1.9m
Fork width (outside)	0.58m
Fork length	0.76m
Ground Clearance	60mm
Max. load capacity (0.36m load centre)	340kg
Max. load capacity (0.61m load centre)	249kg
Max. load capacity (1.07m load centre)	136kg
Min. load height	150mm
Winch (high speed)	13.1 cranks/m
Winch (low speed)	49.2 cranks/m
Weight	150kg

Options

Special paint colours
Adjustable forks
Boom
Pipe cradle
Fork extensions
Load platform
Smart latch

Loading Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
