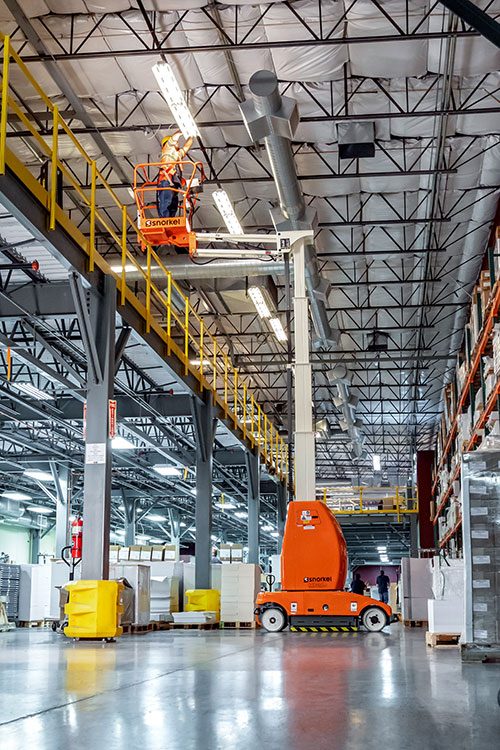

Snorkel MB26J

MB26J

  • Max. working height: 9.8m
  • Platform capacity: 215kg
  • Stowed height: 1.98m
  • Weight: 2,660kg

 Product Specification Sheet

 Snorkel Guard™ Brochure
Add to quote list

Description

The Snorkel MB26J is an electric mast boom lift which can lift 215kg to a working height of 9.8m. Fitted with a jib boom, the MB26J is highly maneuverable and is ideal for applications requiring ‘up and over’ capabilities, particularly in confined spaces.

Standard Features

  • Ultra-tight inside turning radius
  • Proportional controls
  • Tilt alarm
  • Non-marking tyres
  • Hydraulic pothole protection system
  • 2 persons indoor
  • 1 person outdoor
  • Self-seeking automatic battery charger
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

9.8m
Max Platform Height

7.8m
Max Working Outreach

3.0m
Platform Size

0.78m x 0.73m
Overall Width

1.0m
Stowed Length

2.8m
Stowed Height

1.98m
Ground Clearance

100mm
Platform Capacity (SWL)

215kg
Max Drive Height

7.75m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

3.2km/h
Max Drive Speed (elevated)

0.48km/h
Jib Length

1.4m
Jib Arc

130º
Mast-Rotation (non-continuous)

360°
Raise/Lower Time

56/27sec
Gradeability

25%
Inside Turning Radius

0.3m
Outside Turning Radius

2.1m
Tyres

323mm non-marking rubber
Controls

proportional controls
Drive System

electro/hydraulic
Power Source

4 x 6V x 375Ah batteries
Battery Charger

Self-seeking automatic battery charger
Weight

2,660kg

Options

  • Special paint colours
  • Flashing amber light
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

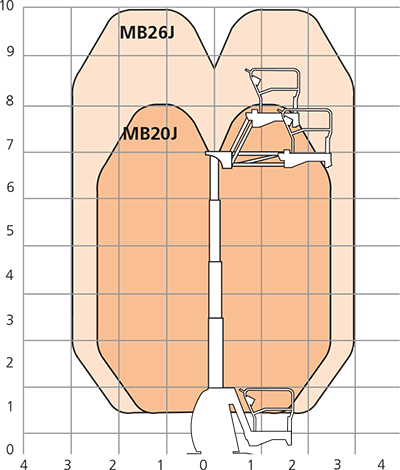

Working Envelope

MB20J-MB26J-working-envelope

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
